crankshaft:

animation

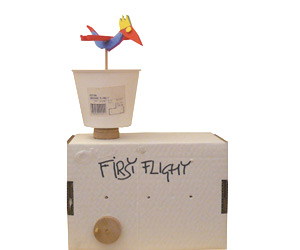

video: First Flight

by Guido Accascina

test kit:

crankshaft

crankshaft: the cam piston transforms a circular motion in a vertical movement.
The larger the diameter of the wheel, the greater the vertical stroke of the red stick.
