high crank slider

animation

video: Paul will appear

by Guido Accascina

test kit:

high crank slider

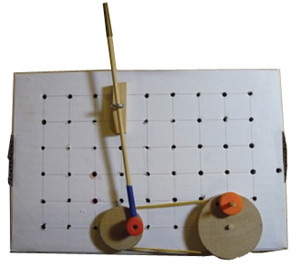

high crank slider: the high crank slider turns a circular motion

in an oscillating movement and a vertical movement.

The larger the distance between the wheel and the plane green brown,
the lower the oscillation of the highest point of the red stick (see also low crank slider)
