oscillating lever 1:

animation

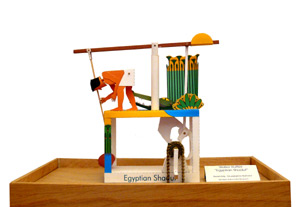

video: Egyptian Shaduf

by Walter Ruffler

video: Jumping

by Guido Accascina

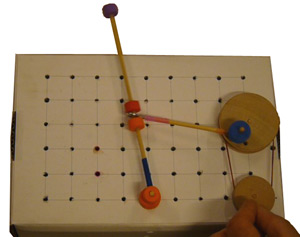

test kit:

oscillating lever 1

oscillating lever 1: the oscillating lever 1 turns a circular motion into a regular oscillatory movement.
The amplitude of the oscillation of the blue lever changes as a function of the diameter of the wheel.
